EXCEL - Creating a Chart in Excel and G-Sheets

Intermediate

[https://files.constantcontact.com/ee1208b4001/e50eb531-ff1b-45a4-bbd3-7ea5d34d0a1f.png?rdr=true]

When I am presenting annual statistics to managers, I want to be sure they read them. If I just list the numbers (book circulations, media checkouts, etc.) they probably will not have much meaning.

Using a table can help show facts clearly, but colorful charts are even better! They grab people's attention. Eye-catching charts can quickly communicate important ideas, simplify complex information, and reveal patterns and trends. That is why I use spreadsheets to show my data instead of using a simple table.

You don’t need to be a graphic designer to share information easily. Excel can help you turn your spreadsheets into different charts. This makes it easier to show your data and tell your story.

How to Create a Chart in Excel

To get started creating a chart in Excel, open an existing spreadsheet with data in it or create a new one.

1.  Choose the information that you want to include in your chart. Click on the first cell of data ... typically it is the header of the first column.
2.  Drag the mouse until all the cells are highlighted. If you want the labels to appear in the chart, select them as well.

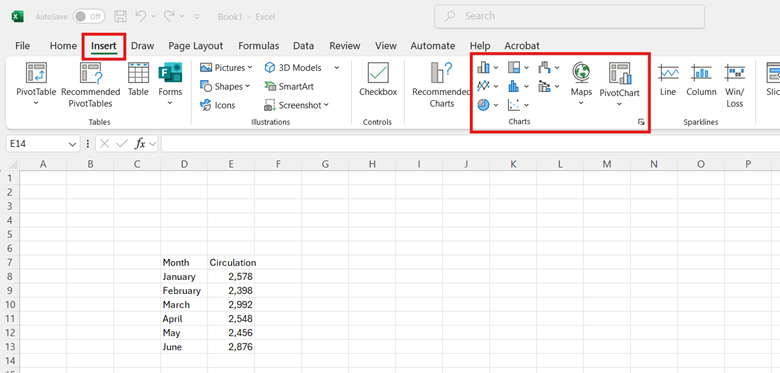

3.  Go to the Insert tab on the ribbon at the top of Excel.
4.  In the Chart Group, select the type you want. You can also click the arrow in the lower right corner of the group to see all the chart styles available.
5.  After you select your type, the chart will appear on the page. Two new tabs will also be in the ribbon at the top: Chart Design and Format.
6.  These two (2) tabs will always appear whenever your cursor (mouse) has clicked somewhere in the chart. These allow you to add or edit any of the elements in your chart.

[https://files.constantcontact.com/ee1208b4001/db489230-9fc1-49a3-9b33-2bb5e031f737.png?rdr=true]

Office 365 Web

The steps for creating a chart in 365 Web are essentially the same as the desktop ... with one important exception: only one tab will appear.

So, follow the steps listed above...

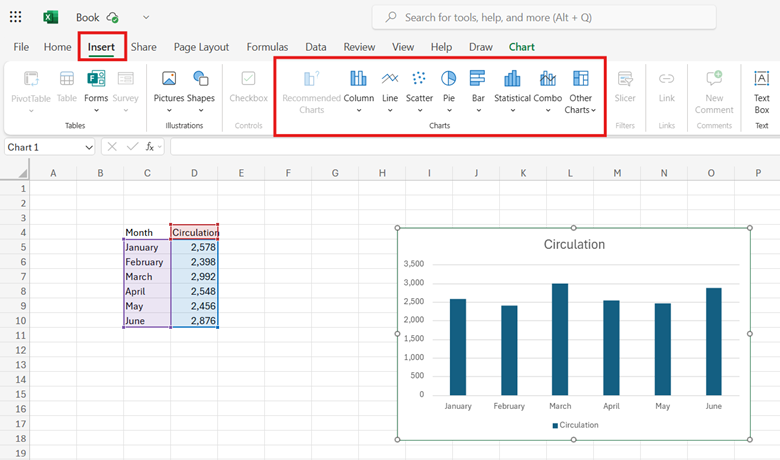

... and when the chart shows up on the screen, you will see one new tab: Chart. (365 Web combines the two tab functions of the Desktop version into one.) See image below.

[https://files.constantcontact.com/ee1208b4001/39355490-529c-4511-bd09-ea12c6d5a4e2.png?rdr=true]

[https://files.constantcontact.com/ee1208b4001/db08e482-1f43-4e94-b220-c1a4143c6158.jpg?rdr=true]
GOOGLE Sheets

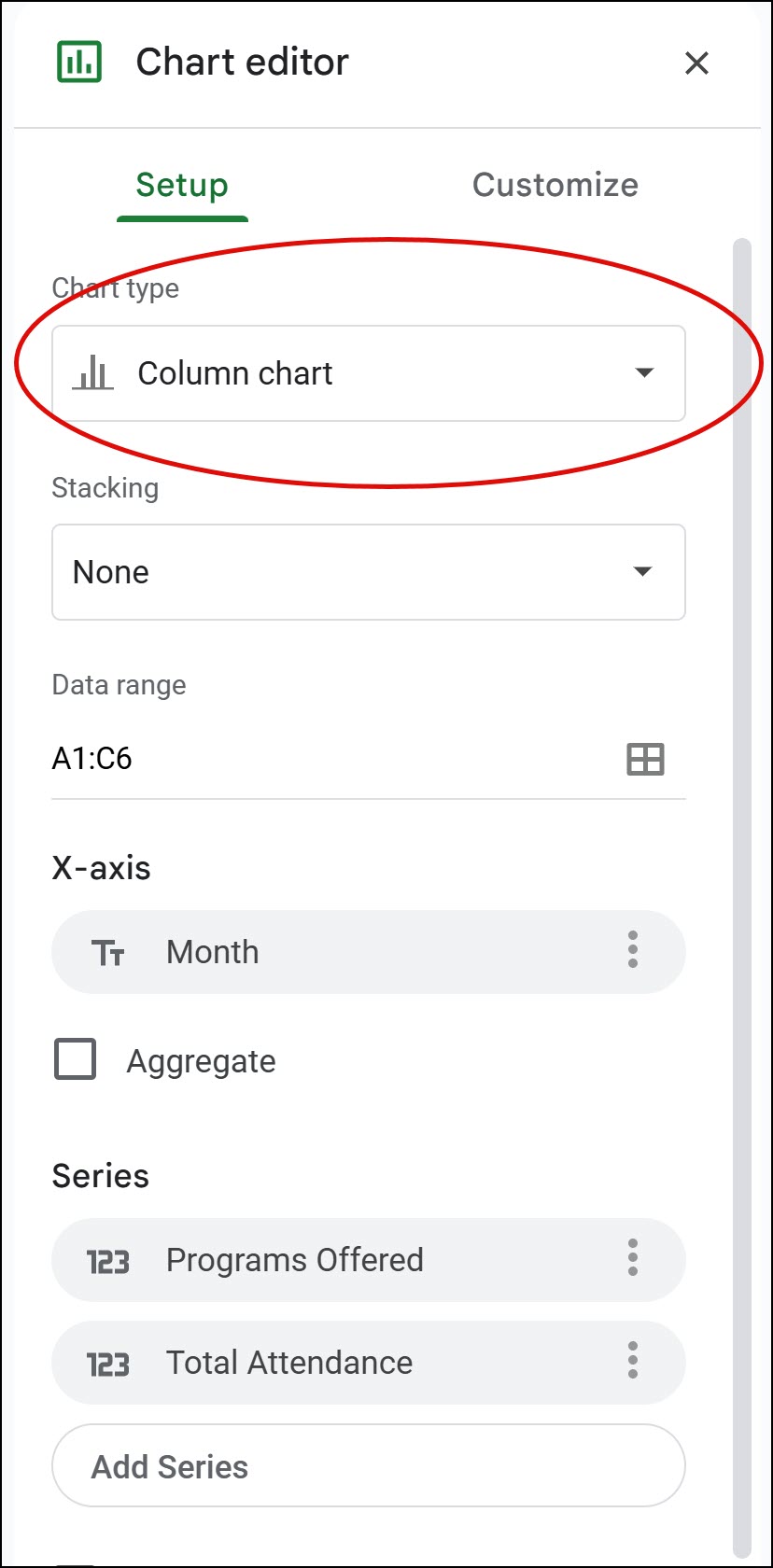

Sheets is very similar to Excel. The main difference is that to edit your chart, the options will appear on the right side of your screen (see image below) ... rather than being in the two tabs at the top.

Here's how to insert a chart:
1.  Open an existing sheet with data already in it or create a new sheet.
2.  Highlight the cells you want to include.

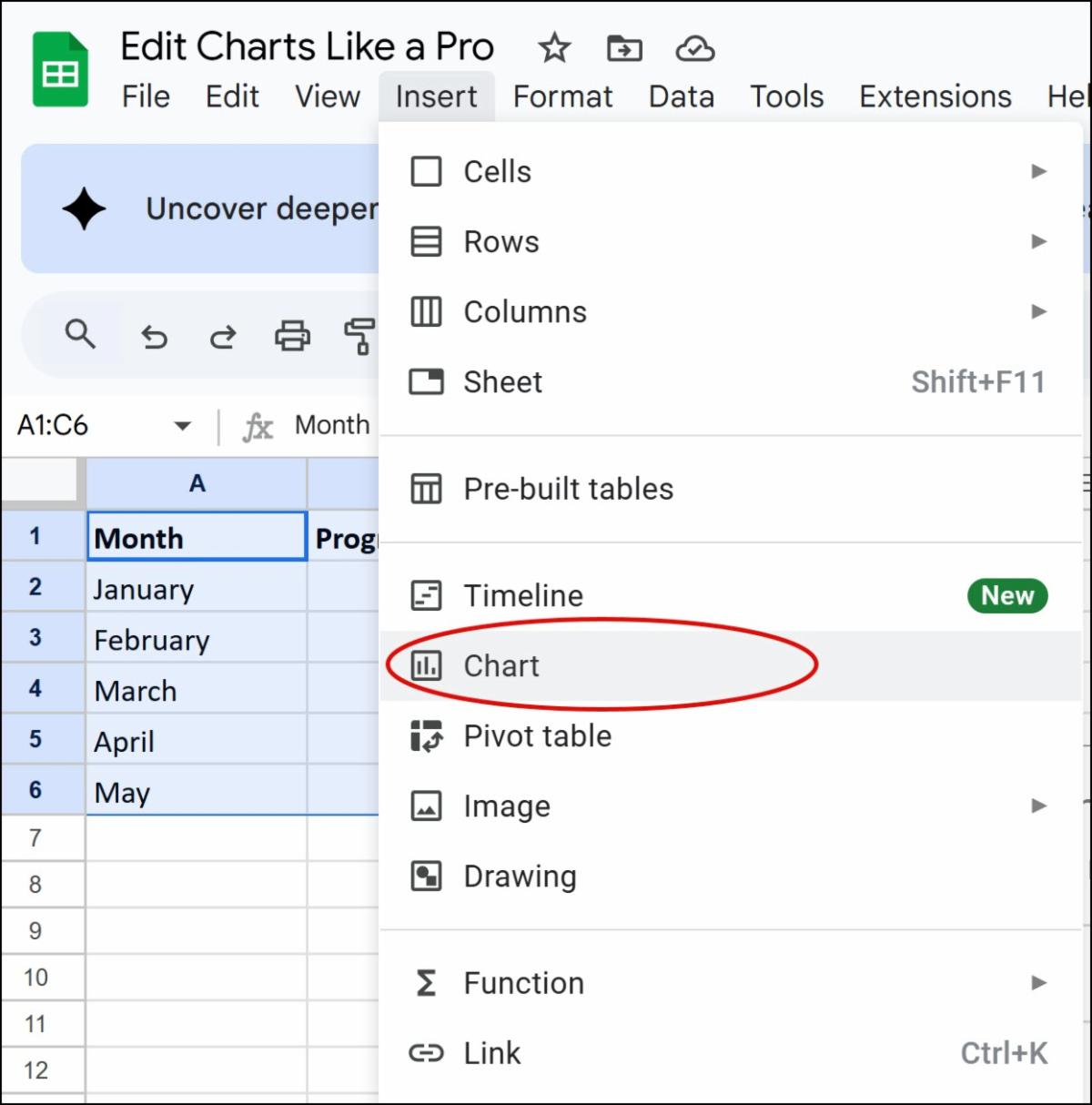

3.  Go to Insert in the menu and click on Chart.

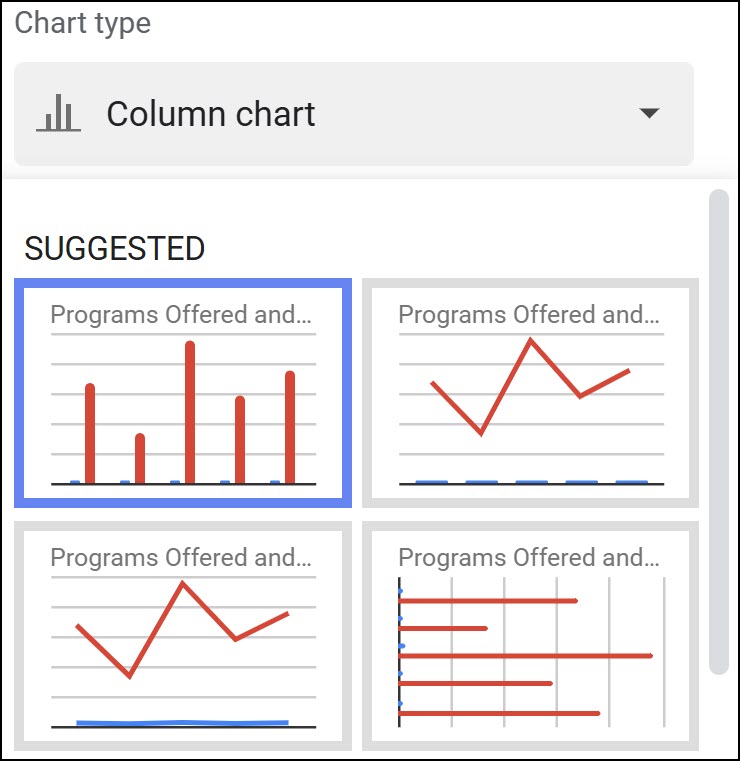

4.  Select the type of chart from the drop-down menu in the Editor box on the right.

The Chart Editor will let you customize how the data is presented.

You can change how the chart is displayed by choosing colors, fonts, and other chart characteristics.

[https://files.constantcontact.com/ee1208b4001/782e4eb0-90fb-4493-a2a7-31850236f6b7.jpg?rdr=true]
